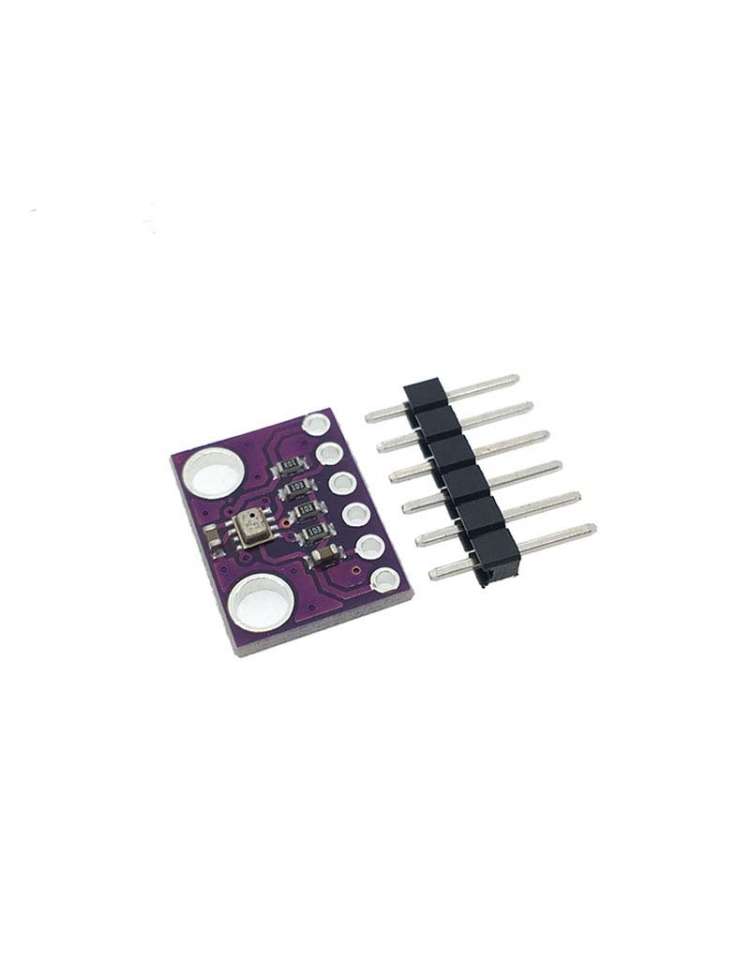

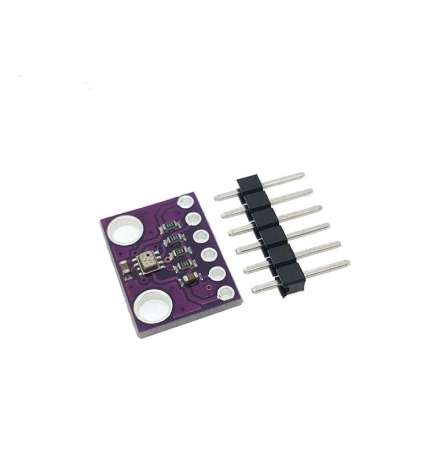

Αισθητήρας Βαρομετρικής Πίεσης I2C ή SPI

DESCRIPTION
BMP280 is an absolute barometric pressure sensor specially designed for small applications. The sensor module is housed in an extremely metal compact package. Its small dimensions and its low power consumption allow for the implementation in battery powered.

As its predecessor BMP180, BMP280 is based on Bosch’s proven Piezo-resistive pressure sensor technology featuring high accuracy and linearity as well as long term stability and high EMC robustness. Numerous device operation options offer the highest flexibility to optimize the device regarding power consumption, resolution, and filter performance. A tested set of default settings for the example use case is provided to the developer in order to make design-in as easy as possible.

SPECIFICATIONS

• Pressure ranges: 300-1100 hPa (+ 9000m above & -500m below sea level
• Operating Current: 2.7µA @ 1 Hz sampling frequency
• High precision: at low-power mode, the resolution is 0.06hPa (0.5 meters);
• Operating voltage: 1.71V ~ 3.5V
• Relative Accuracy: ±0.12 hPa, equiv. to ±1 m (@25℃)
• Temperature Measurement Range: 0 ~65 ℃
• Temperature Accuracy: 0.01℃
• Operating Temperature range: ：-40℃~+85℃
• Communication interface: I2C or SPI
• Dimension : 12 mm (W) x 16 mm (L) x 2 mm (H)

Reference Code: BMP280
