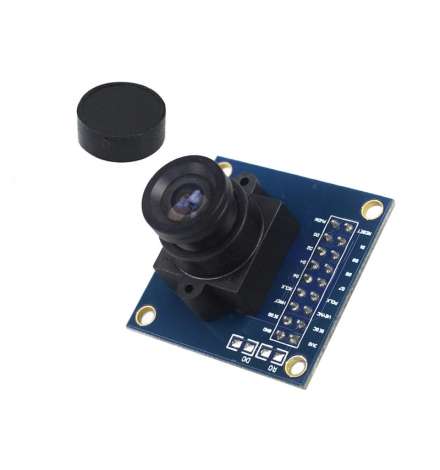

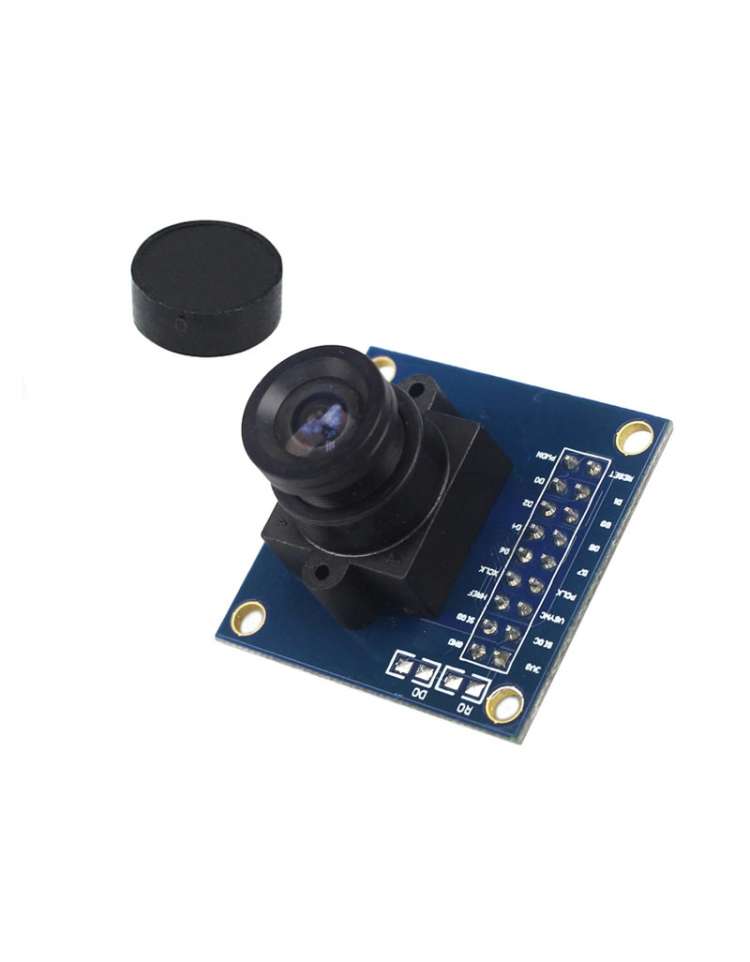

VGA Camera 300KP Module - OV7670

OV7670 image sensor, small size, low operating voltage, and provides all the features of the single-chip VGA camera and image processor. Through theSCCB bus control, you can output the entire frame, sub-sampled, take the window way affect the data resolution of 8 bits. VGA image of the product is up to 30 frames / sec. Users can fully control the image quality, data format and transmission mode. The process of image processing functions including gamma curves, white balance, saturation, chroma, and so can beprogrammed through the SCCB interface. OmmiVision image sensor applications unique sensor technology to improve image quality by reducing or eliminating the optical or electronic defect, such as fixed pattern noise, tail-blooming, clear and stable color image.

   High sensitivity for low-light applications
   Low voltage suitable for embedded applications
   Standard SCCB interface compatible with I2C interface
   RawRGB to RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2)output format
   support VGA, CIF, and from CIF to 40x30 the size
   VarioPixel subsampling way
   eliminate light stripes, automatic black level calibration image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
   ISP has eliminate noise and dead pixel compensation function
   support image scaling
   The lens is the loss of light compensation
   50/60Hz detection
   the saturation automatically adjust ( UV adjustment)
   edge enhancement automatically adjust
   Noise Reduction automatically adjust
   key parameters
   photosensitive array 640X480
   IO voltage 2.5V to 3.0V ( internal LDO to core supplies ) the
   power operation 60mW/15fpsVGAYUV
   Sleep < 20 μ A
   temperature operation from -30 ° C to 70 ° C
   0 ° C to 50 ° C
   ( 8 -bit) output format ? YUV/YCbCr4 RGB565/555/444 GRB4: 2:2: 2:2 Raw RGB Data
   Optical size of 1/6 "
   field of view angle of 25 °
   maximum Zhen rate 30fps VGA
   Sensitivity 1.3V / (Lux-sec)
   signal to noise ratio of 46 dB
   dynamic range of 52 dB
   browsing mode progressive
   electronic exposure
   area of 3.6 μ mx 3.6 μ m
   dark current 12 mV / s at 60 ° C

Reference Code: OV7670
