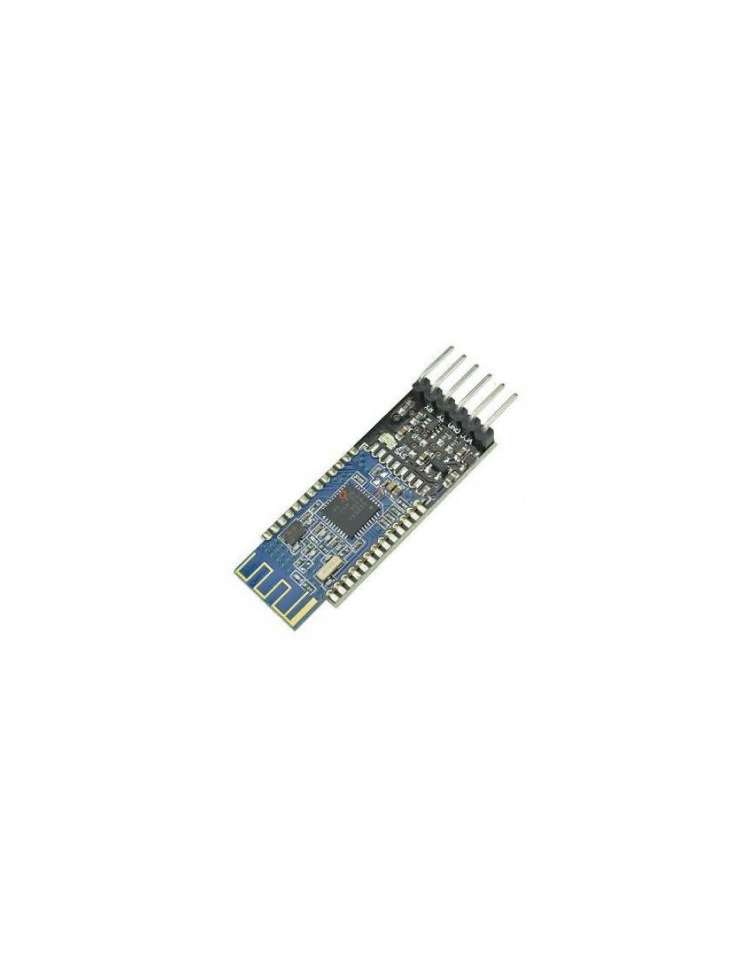

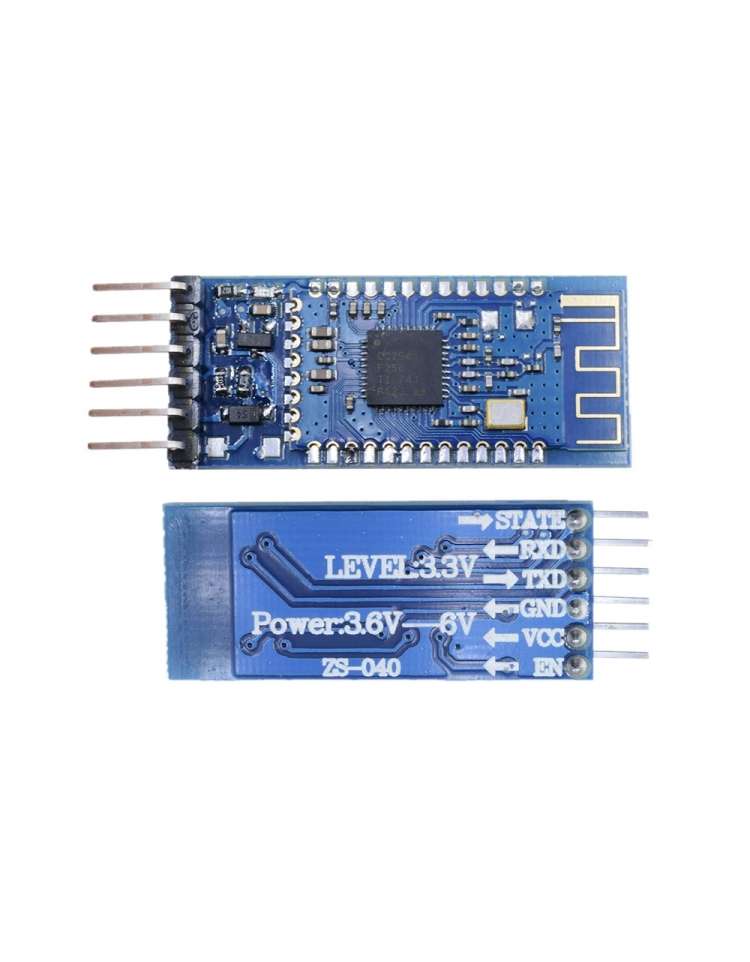

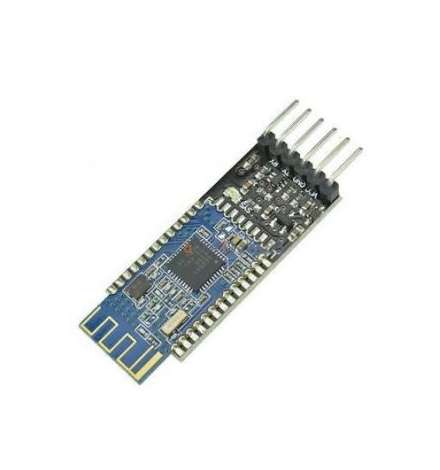

The HM-10 Bluetooth module combines the powerful and programmable Texas Instruments CC2541 Chipset with the required components to start right away with your BLE development. The module offers an on-board voltage regulator and is TTL-level and 5 V tolerant. The Bluetooth-SoC can be accessed via UART interface and supports AT-Commands for setup. It supports a full Bluetooth 4.0 standard and can be used for your Arduino or microcontroller to Android or iOS communication projects. This module can be used to replace HC-05, HC-06, and HC-07 devices. This module can also be configured and used as an iBeacon for use with Apple devices.
SPECIFICATIONS
- Bluetooth Protocol: Bluetooth Specification V4.0 BLE
- USB Protocol: USB V2.0
- Operating Frequency: 2.4GHz ISM band
- Modulation Mode: GFSK (Gaussian Frequency Shift Keying)
- Transmitting Power: ≤4dBm
- Sensitivity: ≤-84dBm at 0.1% BER
- Transmission Rate: Asynchronous: 6 kbps
- Synchronous: 6 kbps
- Security Feature: Authentication and encryption
- Support Service: Central & Peripheral UUID FFE0, FFE1
- Power Supply: +3.3VDC 50mA
- Operating Temperature: -5 ~ +65 Centigrade
FEATURES
- Industrial remote control, remote sensing
- POS system, and Bluetooth keyboard, mouse, and joystick
- Automobile testing equipment
- Portable, battery-powered medical equipment
- Automation data acquisition
- Bluetooth remote control toys
- Wireless LED display system
- Bluetooth printer
- Smart Home and Industrial Control
DIMENSIONS
- Board: 41 x 15.6mm
- With pins: 47 x 15.6 x 7mm
- Pitch of pins: 0.079"/2mm
