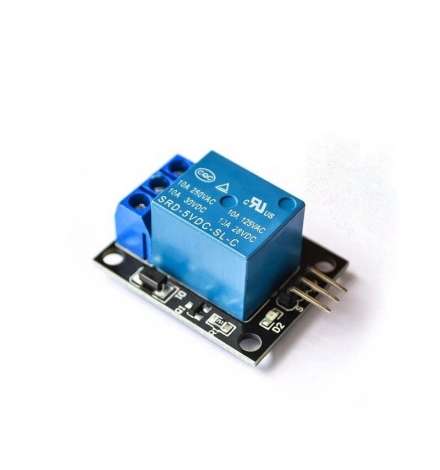

1 Channel 5V Relay Module KY-019
DET569
New product
One of the most practical applications of the Arduino is controlling devices like box fans, light bulbs, and other home appliances. Since the Arduino operates at 5V, it cannot control these higher voltage (120-240V) devices directly. However, we can get around this problem by using a 5V relay to switch the 120-240V current and programming the Arduino to control the relay.
- Maximum load: AC 250V/10A, DC 30V/10A
- Trigger current: 5mA
- Working voltage: 5V
- Module size: 50 x 26 x 18.5mm (L x W x H)
- Four mounting bolt holes, diameter 3.1mm
KY-019
