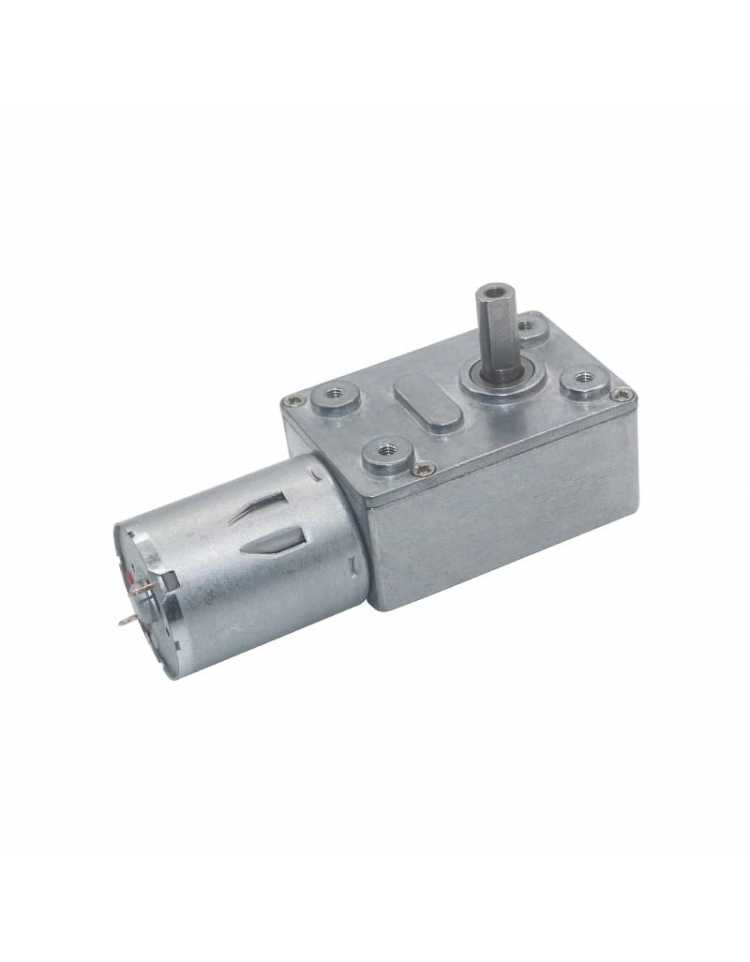

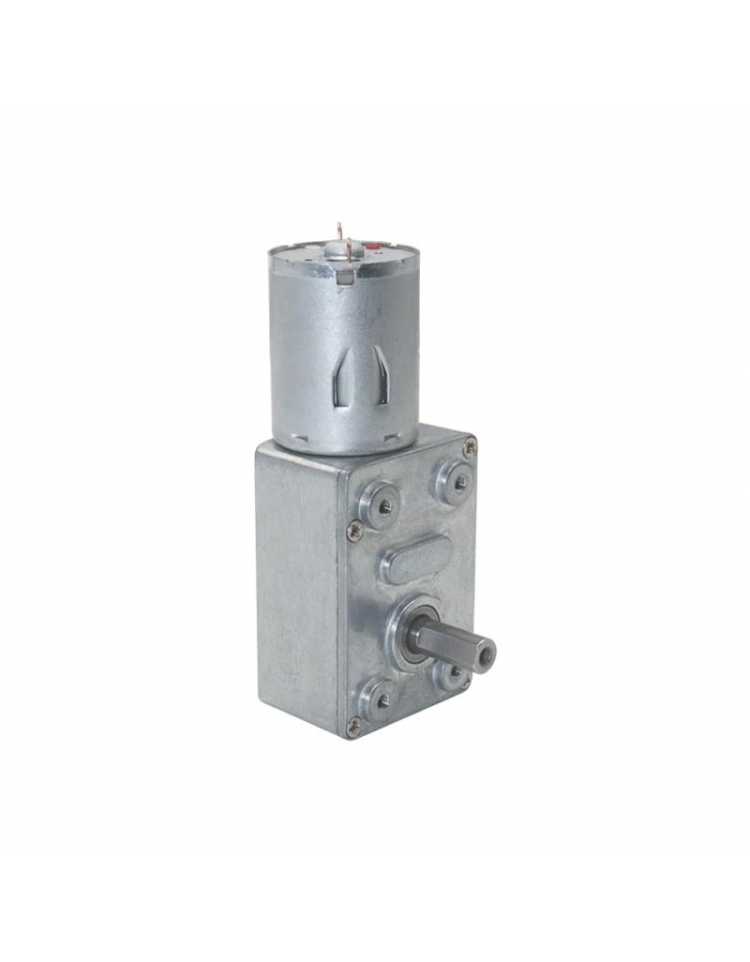

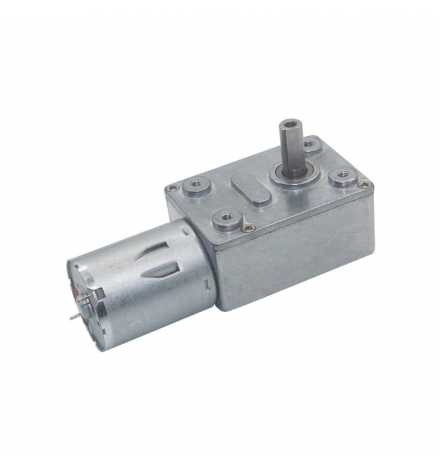

Hollow Shaft Gear Motor 6v 2RPM

Hollow Shaft Gear Motor 6v 2RPM

Specifications:

• Rated Volt: DC 6v
• Speed(No load): 2 RPM
• Max torque:24kg.cm
• Main Material: Metal
• Weight:160g

Datasheet of worm gear motor jgy370:
The parameters in the table below are the parameters for the motor connection rated voltage 6v / 12v / 24v

The following is a description of the quality materials and structures of this motor.

1. The gearbox is made of aluminum alloy; the worm is made of copper; all metal gears

2. high-quality carbon brush, wear-resistant, prolong the service life of the motor

3. pure copper coil, high-temperature resistance, superconductive, life is 10 times that of Inferior motor

4. high-quality magnet, complete and does not change the magnetic field, so that the performance of the motor is better, and the rotor does not get stuck

Reference Code: JGY370
