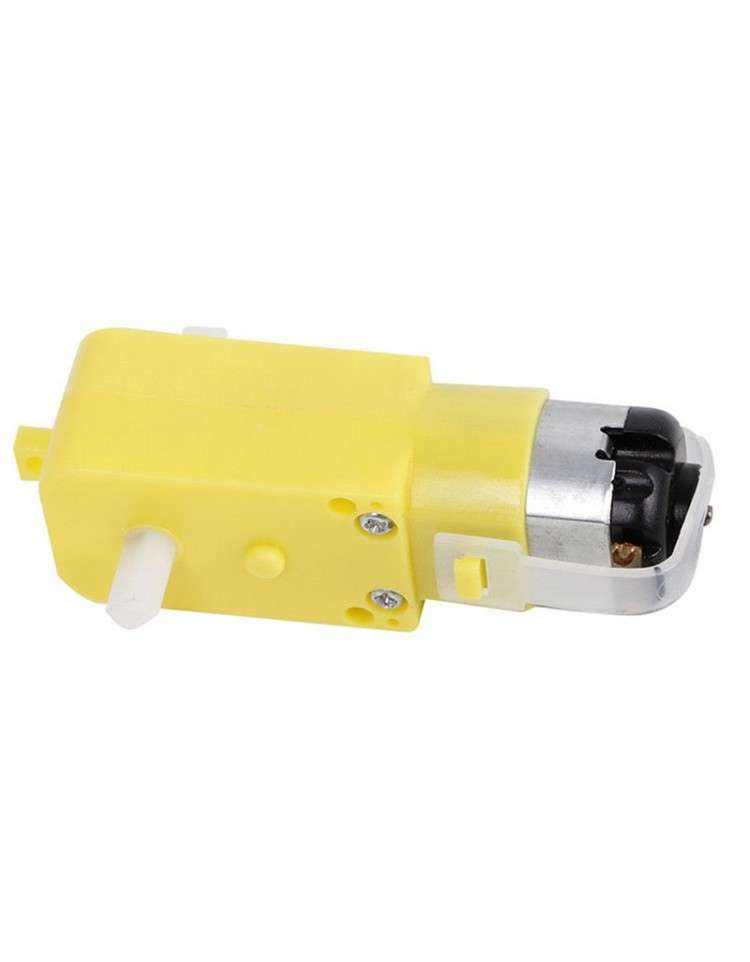

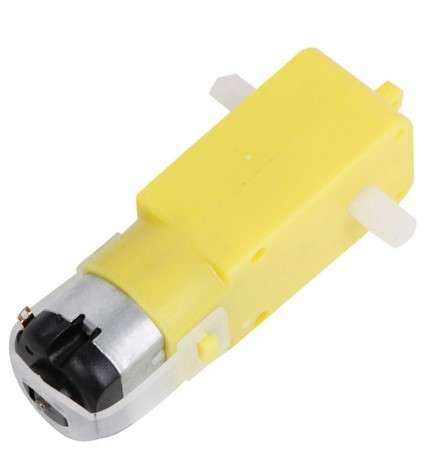

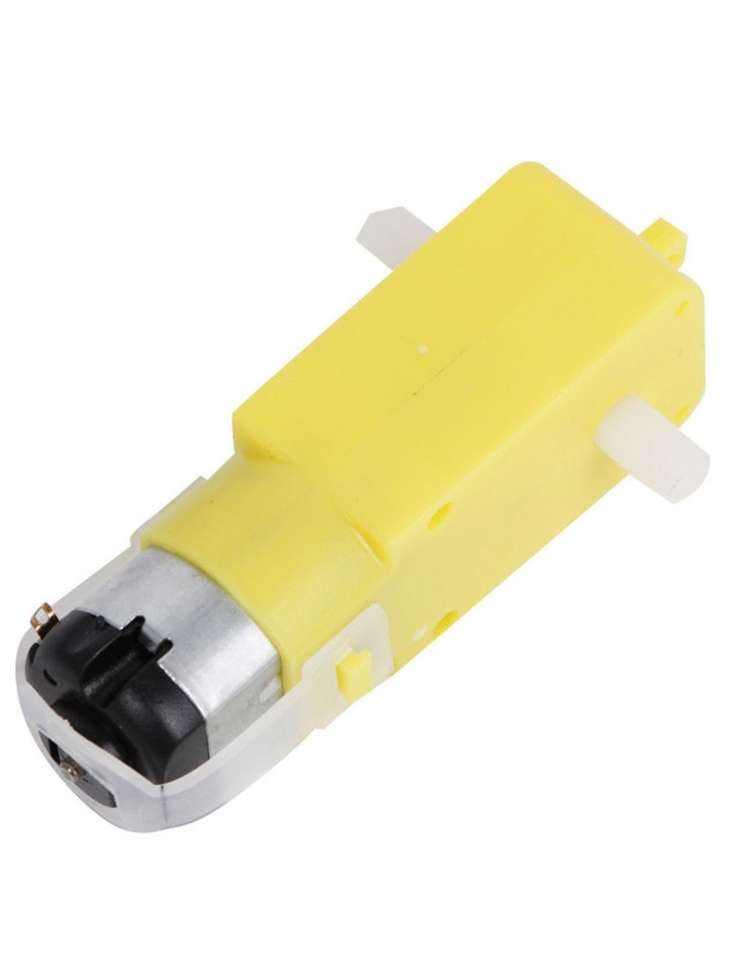

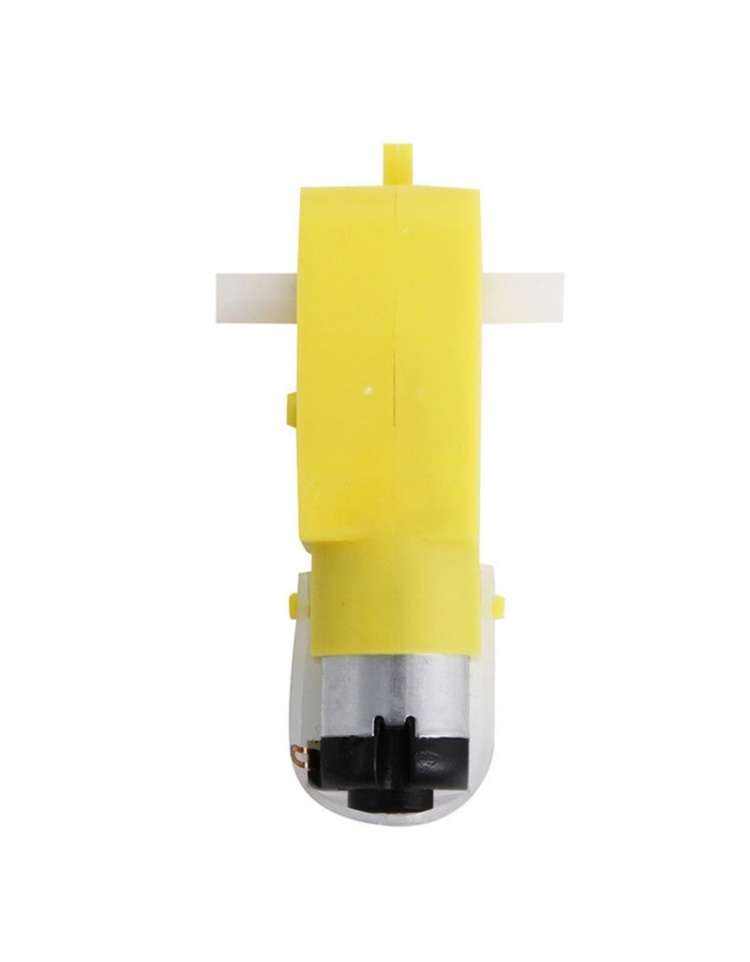

A double output shaft inline motor and gearbox assembly. The gearbox delivers a ratio of 1:48 and is made from high quality plastic. Ideal for use in the construction of robotics and other models. All that is needes is to add wheels, hubs or tracks.
- Double output shaft
- Power: 3 to 6V DC
- Single motor
- Without loading: 75-250mA
- Speed: 125rpm (3v no load 90rpm - 6v no load 200rpm)
- Weight: 29g
- Size: 71 x 2 x 21 mm
- Shaft: 4mm flat edged, 5mm long
- Torque: approx 0.8kg * cm (at 3V), approx kg * cm (at 6V)
This small DC motor has a gearbox ratio of 1:48. The gearbox has a reduction in speed, which gives the engine much more power. These motors are ideal for robotic platforms, such as robotic cars. They go well with the 65mm rubber wheel. The motors have an input voltage between 3V and 6V, where a higher voltage gives more output. This motor has a return shaft on which a rotary encoder can be installed to read with high resolution how the motor is moving.
