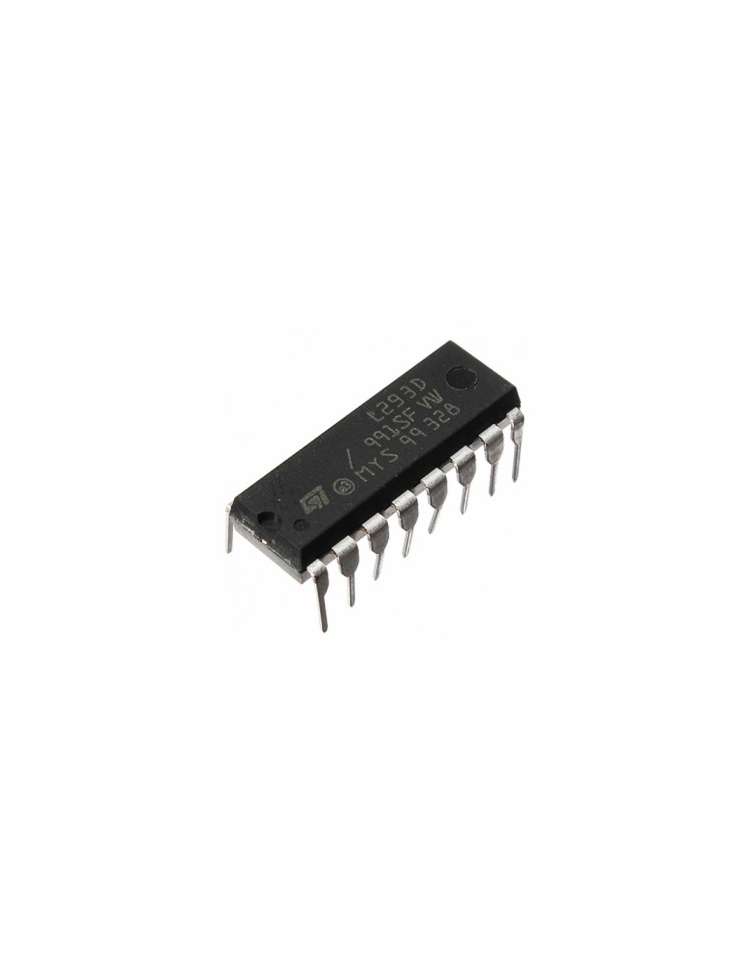

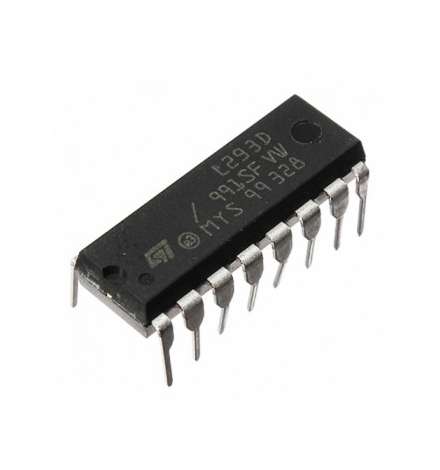

IC L293D Motor Control/Driver
ICL293D
New product
Integrated circuit
The L293D is a monolithic integrated, high voltage, high current, 4-channel driver.” Basically this means using this chip you can use DC motors and power supplies of up to 36 Volts, thats some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also what’s known as a type of H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
SPECIFICATIONS
Case: DIP16
Breadboard Friendly: Yes
Driver Type: DC Motor
Max. Current per Channel: 1.2A
EXTRA SPECIFICATIONS
- Wide Supply-Voltage Range: 4.5 V to 36 V
- Separate Input-Logic Supply
- Internal ESD Protection
- Thermal Shutdown
- Output Current 1 A Per Channel (600 mA for L293D)
- Peak Output Current 2 A Per Channel (1.2 A for L293D)
- Output Clamp Diodes for Inductive
- Transient Suppression L293D
