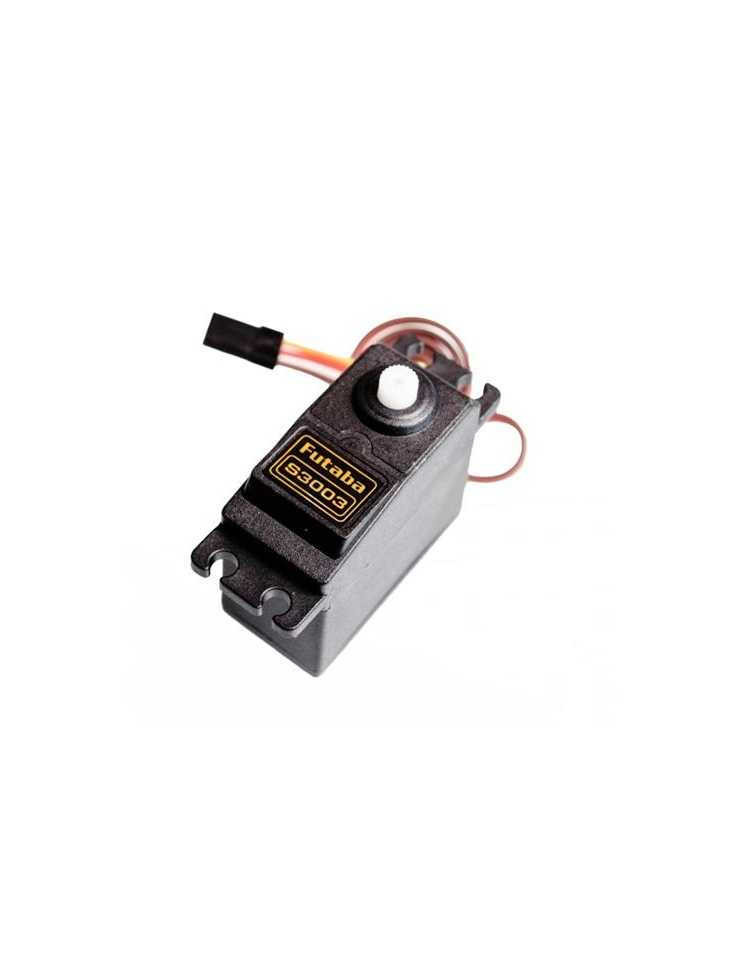

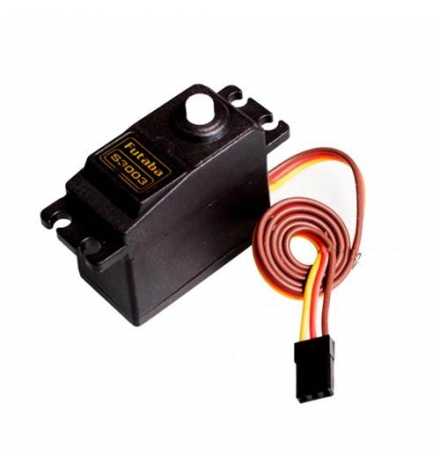

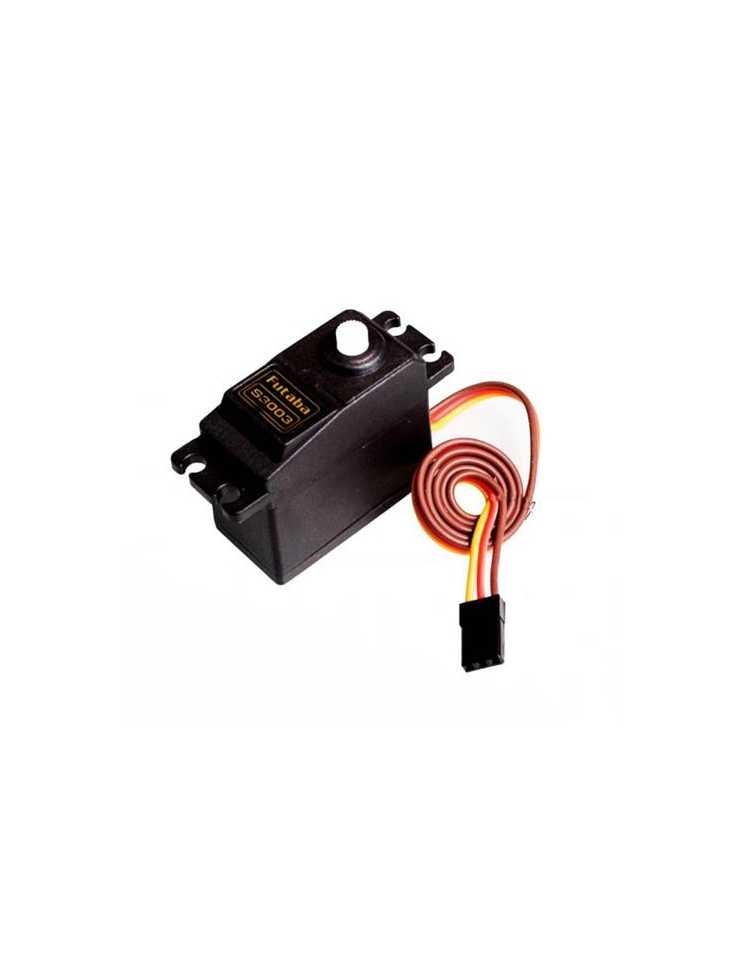

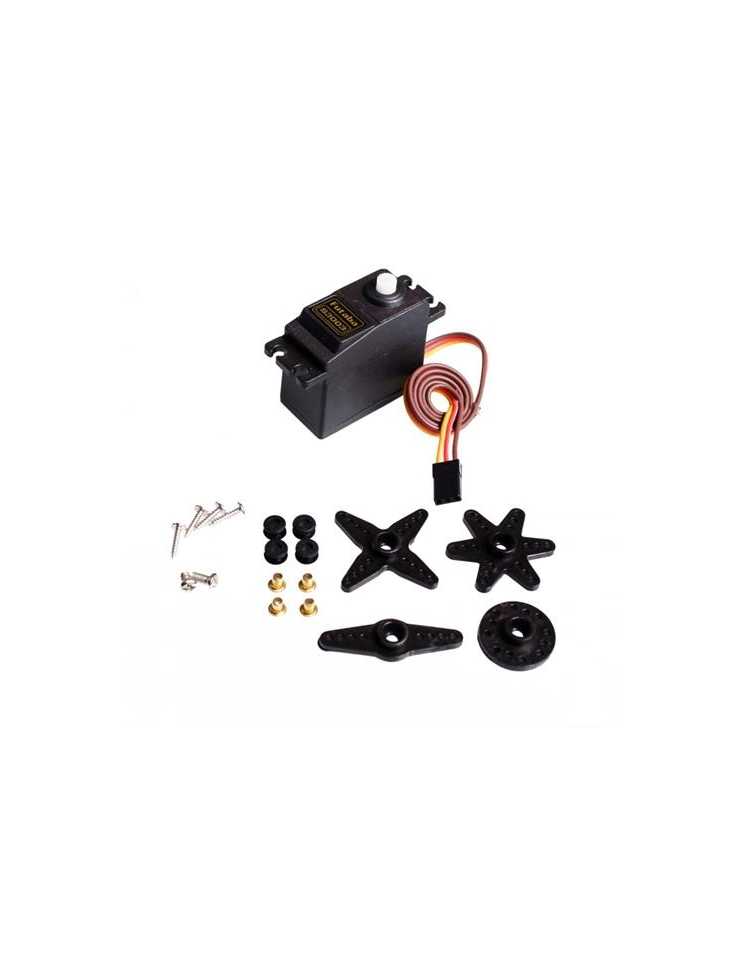

Model: | Futaba S3003 |
Dead Band: | 0.100 ms |
Control System: | +Pulse Width Control |
Working Frequence: | 20ms period / 50hz (Analog Control) |
(RX) Required Pulse: | 3.0 ~ 5 Volt Peak to Peak Square Wave |
Operating Voltage: | 4.8 ~ 6 V DC Volts |
Operating Temperature Range: | -0 to + 55 Degree C |
Operating Speed (4.8v): | 0.200 sec/60° degrees at no load |
Operating Speed (6v) | 0.160 sec/60° degrees at no load |
Stall Torque (4.8v): | 9.4kg/cm |
Stall Torque (6v): | 11kg/cm |
Motor Type: | Brushed Motor |
Potentiometer Drive: | Direct Drive |
Bearing Type: | No Bearing |
Gear Type: | Plastic Gears |
Case Material: | Plastic |
Programmable: | NO |
Connector Wire Length: | 32.0cm (12.6 inch) |
Dimensions: | 40.7×19.7×42.9mm |
Weight: | 37 grams (1.3 oz) |
S3003
