Miniature Vibration Motor 3V DC
MOT0021
New product

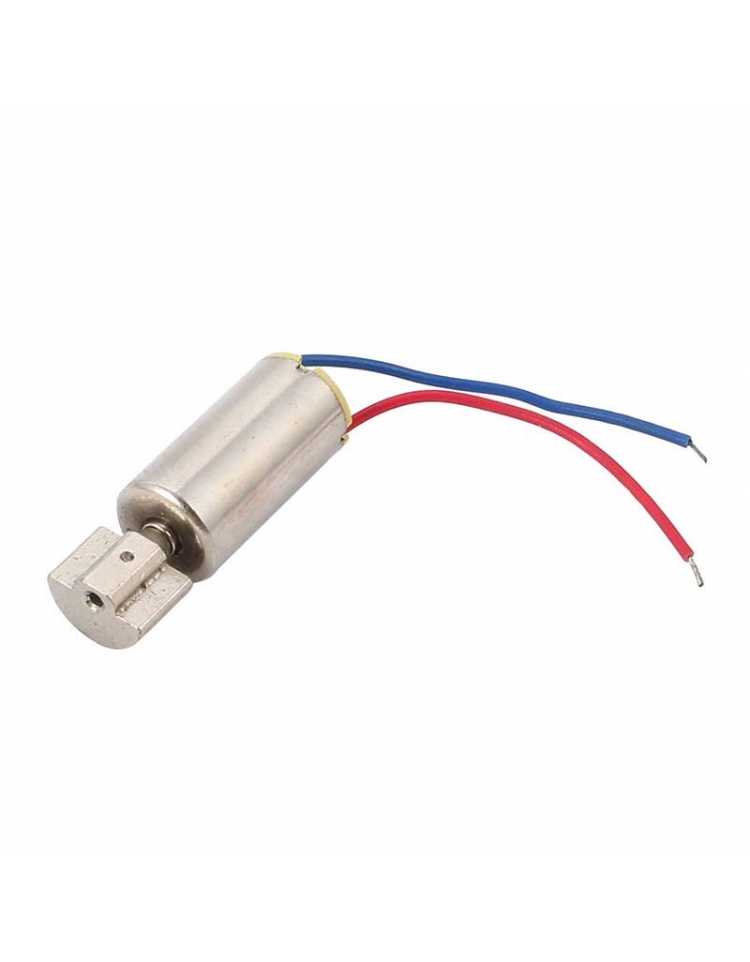

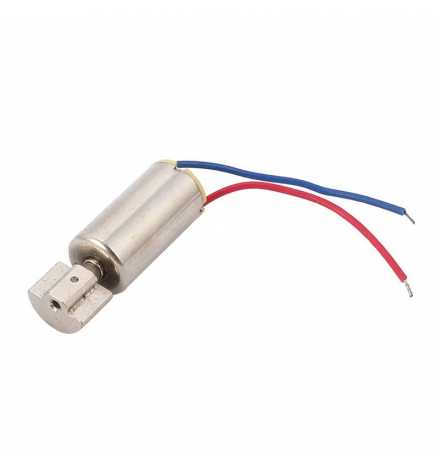

Miniature vibration motor measuring only 8mm long x 4mm diameter. Coreless motor design, rated at 3V nominal. Originally designed for silent alert functions in mobile phones and pager, these motors have since found many additional applications within tools, robotics, control sticks and various alert functions in handheld equipment.
Pre-wired with red & black leads 20mm.
Dimensions: L: 8mm. Diameter: 4mm
Rated voltage: 3.0VDC
Operating range: 1.5-3VDC
Rated speed: 12000 RPM (±2000 RPM)
Vibration amplitude: 1.5
Starting voltage: 1.5V max.
Rated current: 40mA
Stall current: 70mA max.
Weight: 1.85g
