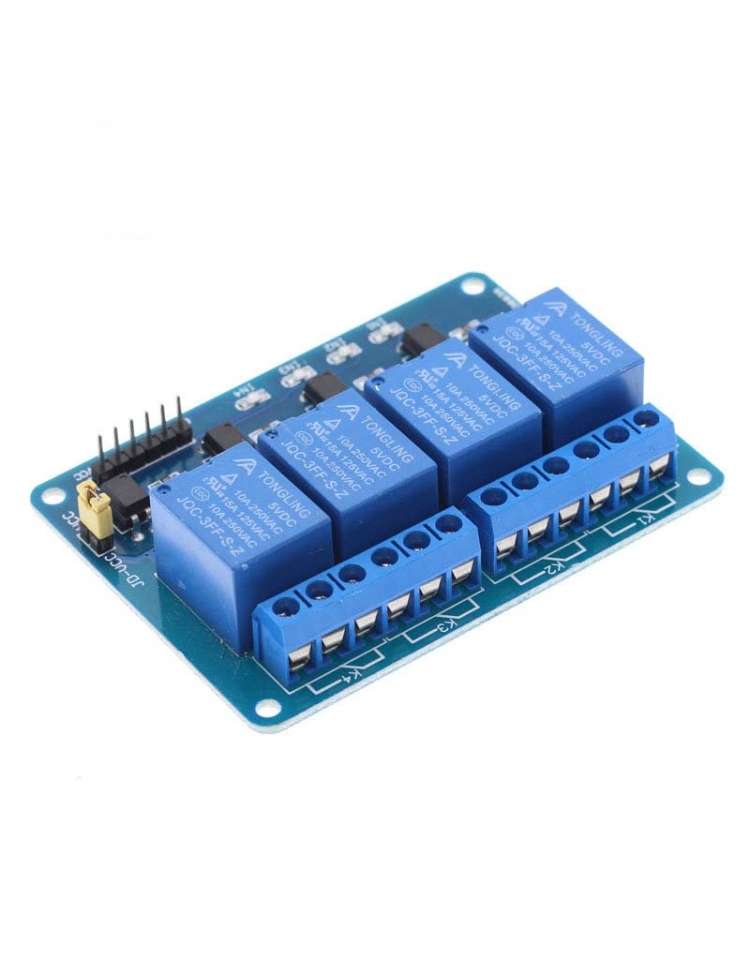

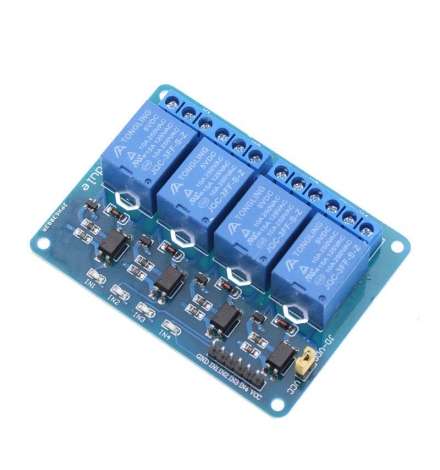

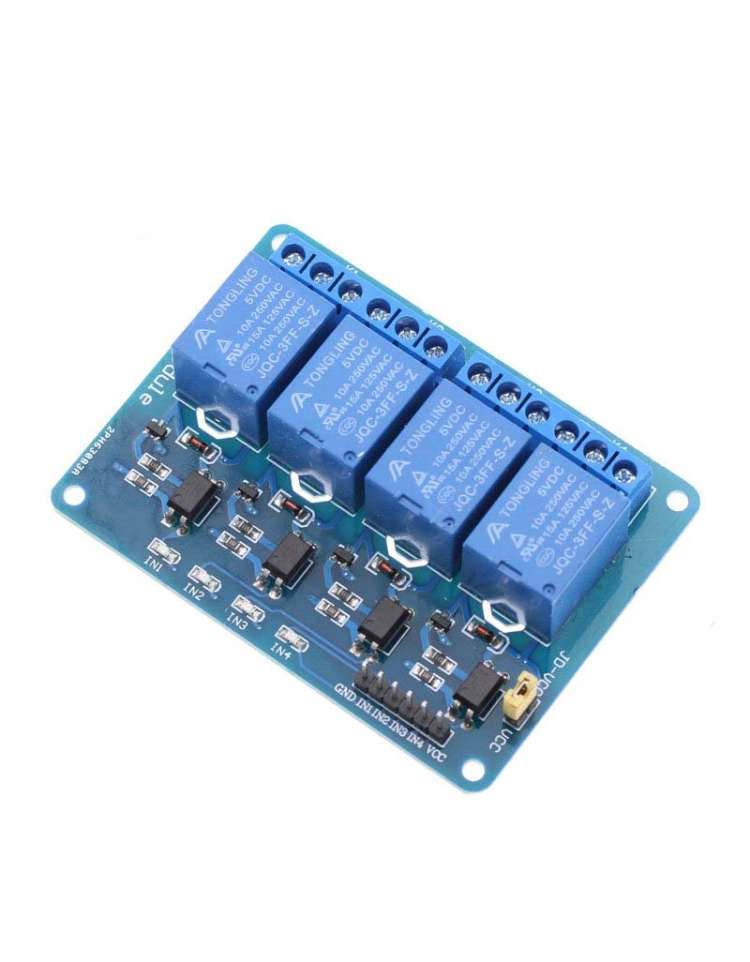

5V Relay Module - 4 Channel
REL720
New product
This is a 5V 4-Channel Relay interface board. Be able to control various appliances, and other equipments with large current. It can be controlled directly by Micro-controller like Arduino. 5V 4-Channel Relay interface board, and each one needs 50-60mA Driver Current.
Equiped with high-current relay normally open, normally closed, AC250V 10A, DC30V 10A. Indication LED's for Relay output status.
Application:
- Supports all MCU control.
- The industrial field.
- PLC control.
- Smart home control.
SPECIFICATIONS
Rated Coil Voltage: 5VDC
Contact Current Max. : 10A
Type / Contacts Config.: SPDT Module
EXTRA SPECIFICATIONS
- 5V relay 250V 10A
- Input low level effective.
- Input sign.
- GND power supply.
- VCC signal power supply.
- IN1, IN2, IN3, IN4 line
- JD-VCC relay power supply.
