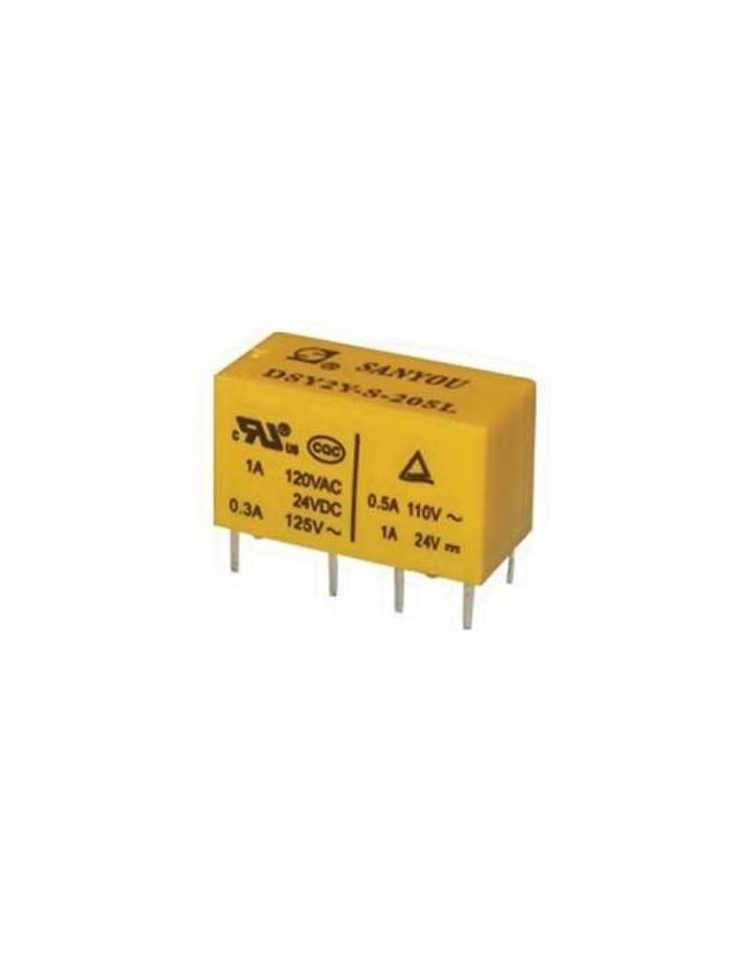

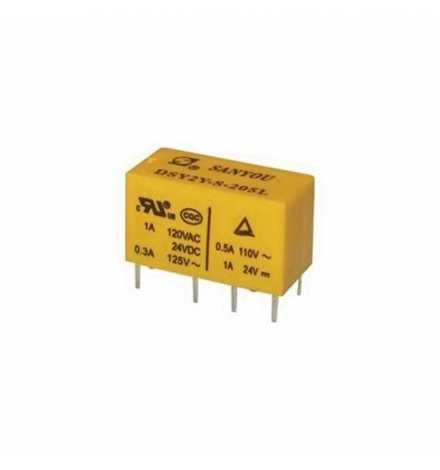

Relay 5V DC 1A 2P DSY2Y-S-205L
REL310
New product
- High sensitivity 200mw nominal operating power
- High mounting density, small size, and light weight
- Sealed construction
Typical Application
- Telecommunication equipment
- Office equipment
- Computer peripherals
- Security/alarm systems
- Medical equipment
| Arrangement | 2c | ||||
| Contact material | AgPd30+AuAg8 | ||||
| Contact resistive (By voltage drop 1A 6VDC) |
50mΩ Max. | ||||
| UL/C-UL rating | |||||
| Resistive Load (cosΦ=1) | 1A 120VAC 2A 24VDC |
||||
| VDE rating | |||||
| Resistive load (cosΦ=1) | 0.3A/1.2A 125VAC | ||||
| CQC rating | |||||
| Resistive load |
|
||||
| Max. switching voltage | 2A | ||||
| Max. switching current | 3A | ||||
| Max. carrying current | 72W 120VA | ||||
| Exoected life (min. ope) | |||||
| Mechanical (at 180 cpm) | 1 Χ 107 | ||||
| Electrical (at 20 cpm) | 1 Χ 105 | ||||
| Norminal operation power | 0.2W, 0.36W | ||||
| Maximum primary operating current | 100A |
DSY2Y-S-205L
