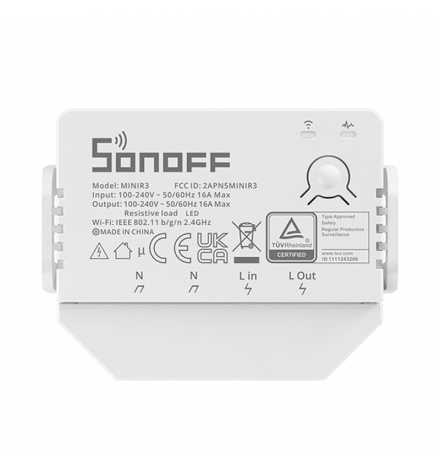

- Max. 16A Load Current. The maximum load current of MINI R3 can be up to 16A that making it a powerful solution to smarten your appliances
- Open Device REST API. Connect and control the MINI R3 with your existing home automation system like Home Assistant via LAN
- eWeLink-Remote” Control. MINI R3 is a smart switch with the gateway function of “eWeLink-Remote”. If you want to use the “eWeLink-Remote” control function, you need to use it with the S-MATE or scene switch R5

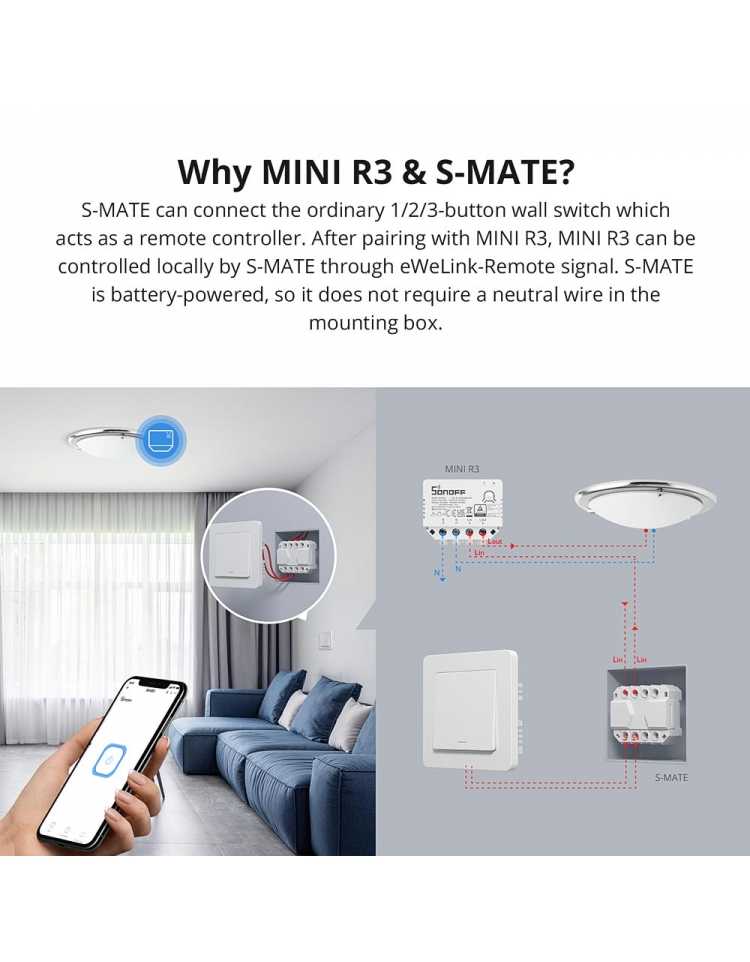

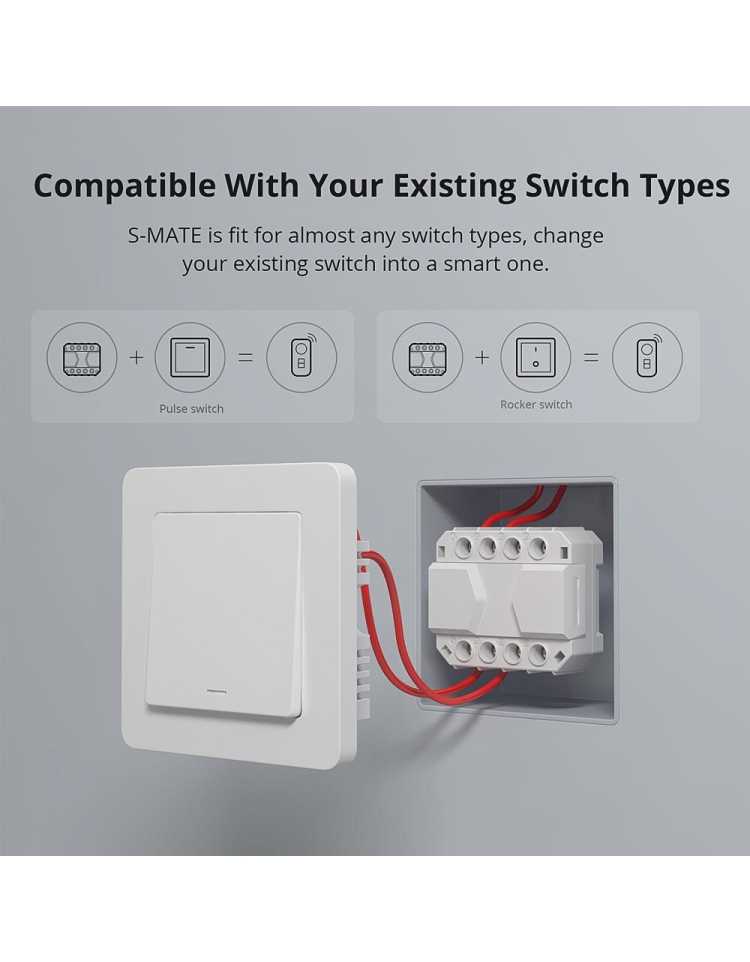

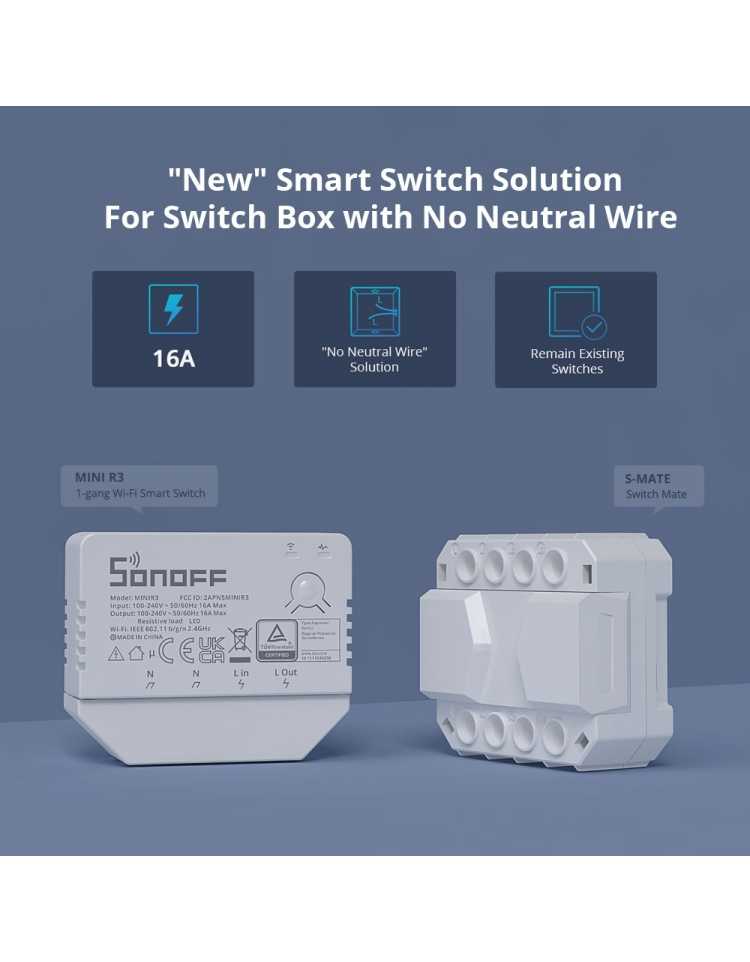

- No Neutral Wire Required Solution.If your switch box does not have a neutral wire, a collocation of MINI R3 and S-MATE can be installed and used
- Safe And Reliable. TÜV, CE, and FCC certifications ensure a safer and more reliable product

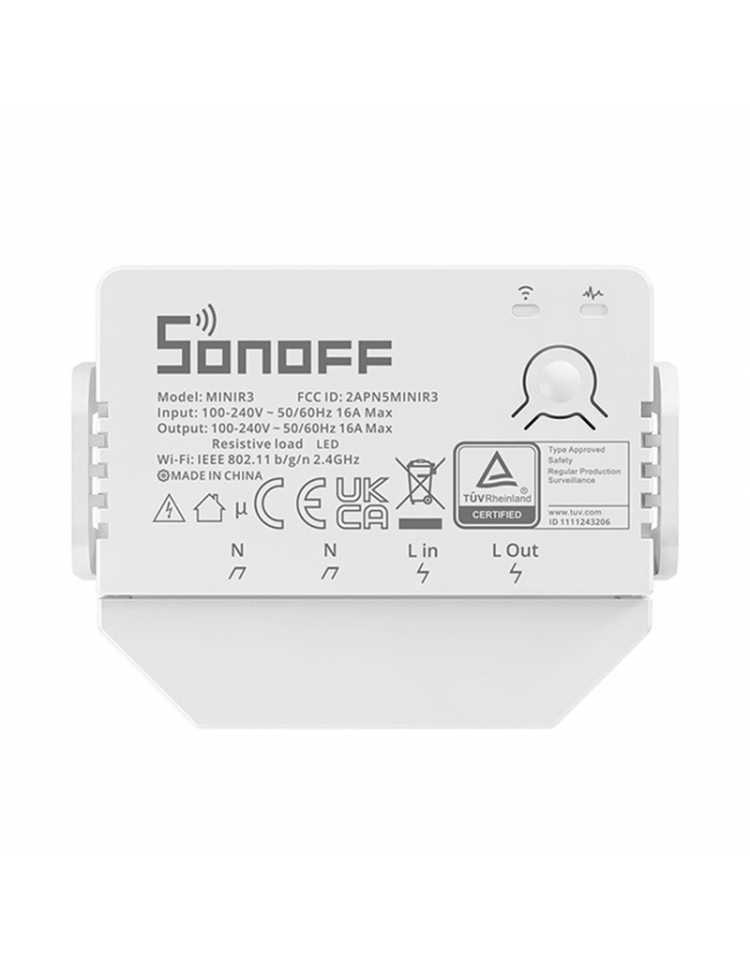

- Input Voltage: 100-240V AC 50/60Hz 16A Max
- Output: 100-240V AC 50/60Hz 16A Max
- Resistive: Load : 3500W
- Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
- Maximum RF output power : Wi-Fi: 18dbm(e.i.r.p) BLE: 10dbm(e.i.r.p)
- eWeLink Remote receiving distance : Up to 50M
- Operating systems: Android & iOS
- Working temperature: -10℃~40℃
- Material: PC V0
- Dimension: 54x45x24mm
Find more here
MINIR3
