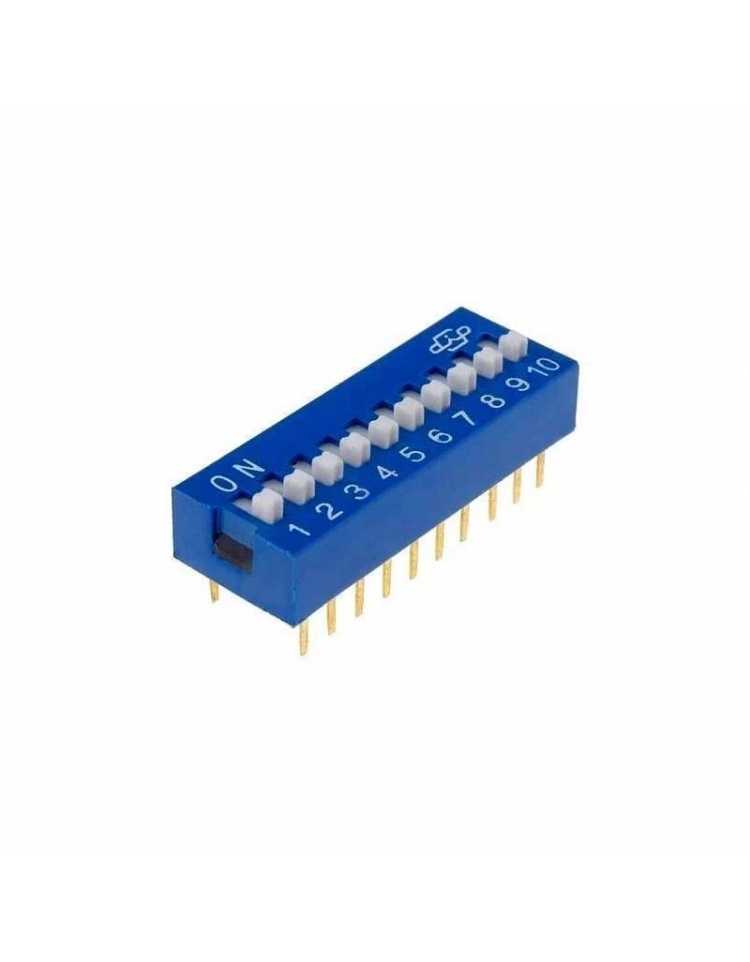

DIP Switch - 10 Position

DIP Switch - 10 Position

SWD020

New product

€0.90

Add to my wishlist

Add to Compare

DIP switch with 10 individual switch positions. The pins have .1" spacing - fits great into a breadboard! Works great as general control switches.

SPECIFICATIONS

Contacts configuration: SPST-NO
Switching method:ON-OFF
DC or AC Rating: 0.05A / 12VDC
Leads for: PCB

EXTRA SPECIFICATIONS

  • Poles Number: 10
  • Switching method: ON-OFF
  • DC contacts rating (at resistance load): 0.05 A / 12 VDC
  • Operating temperature: -25...80°C
  • Mounting: THT
  • Switches features: Raised actuator
  • Max. contact resistance: 100mΩ

Dimensions

  • Overall length: 26.5mm
  • Row pitch: 7.62mm
  • Terminal pitch: 2.54mm
